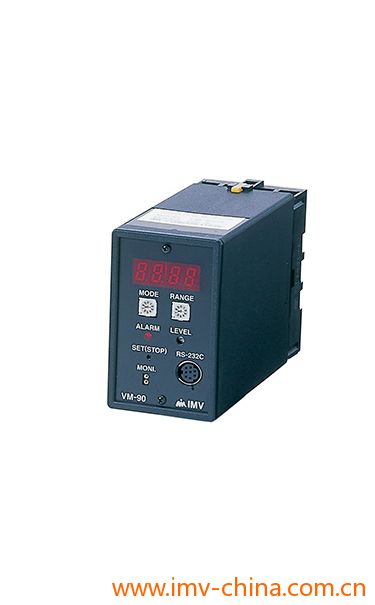

VM-90D Series - 振动信号变换器（VM-90D Series）

产品品牌：日本IMV

产品型号：VM-90D Series

主要技术指标：

低价格、体积小

振动信号变换器（VM-90D Series）

常见问答

产品订购

索取振动信号变换器（VM-90D Series）说明书

索取振动信号变换器（VM-90D Series）报价单

详情
推荐仪器
服务

Specifications

Item

Specification

Signal output

Conversion output

DC4-20 mA, 1 output (response time 3 seconds)^*1

Monitor output

AC ±5 V, FS ± 5 % (For quick check)^*3
DC 1 to 5 V, FS ± 5 % (Option)

Alarm output

Alarm contact

1 step 1a contact, AC 125 V to 0.5 A, DC 30 V to 1A (resistive load)

Alarm setting range

0 to 100% of full scale arbitary setting ( in 1 % step)^*2

Alarm action

Operation that activates when time passes alarm delay time after vibration level exceeds alarm set level. (automatic reset)
Initial alarm delay time setting 5 sec. (3 - 99 sec. : 1 sec. step)

Indication
function

Main body

Red 7 segment LED (4 digit indication)

Indicator

Vibration value：

5-step switching indication depends on the setting mode
Blink for 120 % over range full scale

Alarm setting value (%) :

0 to 100 for full scale^*2

Pickup sensitivity value (%) :

80 to 120 for standard sensitivity

Operational temperature range

-5 to + 55 ﾟC　30 to 90 %RH (Non-condensing)

Power supply

AC100 V ± 10 %　50 / 60 Hz ± 2 Hz

Power consumption

Less than 10 VA

Mounting

On the wall or Din rail (Din rail connector is detachable)

Terminal board

M3.5 screw on the back panel

Material

Plastic

Size / Mass

50 (W) x 127 (D) x 80 (H) mm / Approx. 300 g

*1 Can be changed by the customized software
*2 Setting at 0% disable a alarm function
*3 Only for quick check of waveform

(VP-A51IW, VP-A4345I)

VM-90DA (Applicable to pre-amplifier build-in type pickup)

Measurement Mode	Item	Specification
Acceleration^＊5	Measurement range	10, 20, 50, 100, 200 (m/s² rms)
Acceleration^＊5	Frequency range	10 to 4 kHz ± 1 dB, 10 to 10 kHz, +1 dB, -3 dB
Velocity^＊5	Measurement range	5, 10, 20, 50, 100, (mm/s rms)
Velocity^＊5	Frequency range	10 to 1 kHz ± 1 dB, -2 dB
H Function^＊5	Measurement range	10, 20, 50, 100, 200 (m/s2 rms)
H Function^＊5	Frequency range	DC to 1 kHz (Envelope detection of 2 kHz to 15 kHz)
H Function CF^＊5	Measurement range	5, 10, 20, 50, 100
H Function CF^＊5	Frequency range	DC to 1 kHz (for peak / rms of H function)

(VP-90VC, VP-90VD)

VM-90DV (Applicable to medium frequency pickup)

Measurement mode	Item	Specification
Velocity^＊5	Measurement Range	5, 10, 20, 50, 100 (mm/s rms)
Velocity^＊5	Frequency Range	10 to 1 kHz ±1 dB
Displacement^＊5	Measurement Range	50, 100, 200, 500, 1,000 (μmp-p)
Displacement^＊5	Frequency Range	10 to 500 Hz ± 1 dB

(VP-91VC, VP-91VD, VP-92VC, VP-92VD)

VM-90DVL (Applicable to low frequency pickup)

Mode	Item	Specification
Velocity^＊5	Measurement Range	5, 10, 20, 50, 100 (mm/s rms)
Velocity^＊5	Frequency Range	5 to 500 Hz ± 1 dB
Displacement^＊5	Measurement Range	50, 100, 200, 500, 1,000 (μmp-p)
Displacement^＊5	Frequency Range	5 to 500 Hz ± 1 dB
