产品品牌：日本IMV
产品型号：Micro VP-4M2 Shear type
主要技术指标：
适合测量高频或高加速度振动，
强硬对温度变化和扰动引起的应变在越来越多的部分，
覆盖小尺寸/轻质量高灵敏度。
常见问答
Micro VP-4M2 Shear type - 压电加速度式振动传感器
Micro VP-4M2 Shear type
| Resonance frequency (Hz) | 60,000< |
|---|---|
| Frequency range (Hz) | fc～13,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
0.035 ±20% |
| Capacitance (pF) |
340 |
| Allowable Acceleration(m/s2) |
100,000 |
| Ambient temp. (℃) | －50～＋160 |
| Cable connection | Sidewise, 10-32Direct Screw plug on the other side |
| Mass (g) | 0.2 |
| Material | Titanium |
Micro VP-4M2Z Shear type
| Resonance frequency (Hz) | 50,000< |
|---|---|
| Frequency range (Hz) | fc～10,000 ※ |
| Charge sensitivity pC/(m/s2) |
0.04 ±20％ |
| Capacitance (pF) |
250 |
| Allowable Acceleration(m/s2) |
50,000 |
| Ambient temp. (℃) | －50～＋160 |
| Cable connection | Sidewise direct, 10-32 Receptacle on the other end |
| Mass (g) | 1.2 |
| Material | Titanium |
Small VP-2M1Z Shear type
| Resonance frequency (Hz) | 35,000< |
|---|---|
| Frequency range (Hz) | fc～10,000 ※ |
| Charge sensitivity pC/(m/s2) |
0.16 ±20％ |
| Capacitance (pF) |
440 |
| Allowable Acceleration(m/s2) |
50,000 |
| Ambient temp. (℃) | －20～＋160 |
| Cable connection | Sidewise, M3 Screw connector |
| Mass (g) | 5.2 |
| Material | Titanium |

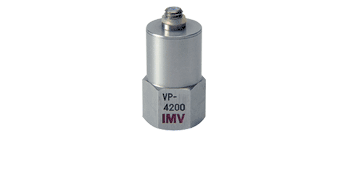

Large Acceleration･General type VP-4200 Shear type
| Resonance frequency (Hz) | 20,000< |
|---|---|
| Frequency range (Hz) | fc～7,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
5.0 ±10％ |
| Capacitance (pF) |
1,400 |
| Allowable Acceleration(m/s2) |
10,000 |
| Ambient temp. (℃) | －20～＋150 |
| Cable connection | Top-upright 10-32 Screw connector |
| Mass (g) | 29 |
| Material | Stainless steel（SUS303） |

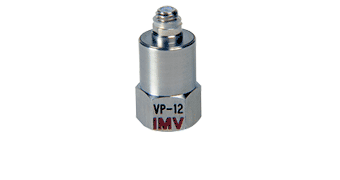

Large Acceleration･General type VP-12 Shear type
| Resonance frequency (Hz) | 30,000< |
|---|---|
| Frequency range (Hz) | fc～10,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
1.5 ±10％ |
| Capacitance (pF) |
1,300 |
| Allowable Acceleration(m/s2) |
20,000 |
| Ambient temp. (℃) | －20～＋150 |
| Cable connection | Top-upright 10-32 Screw connector |
| Mass (g) | 15 |
| Material | Stainless steel（SUS303） |

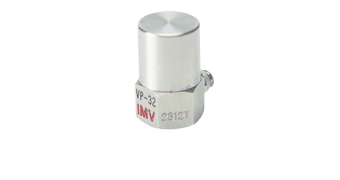

Wide Temp. range VP-32 Shear type
| Resonance frequency (Hz) | 30,000< |
|---|---|
| Frequency range (Hz) | fc～10,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
3.0 ±10％ |
| Capacitance (pF) |
1,500 |
| Allowable Acceleration(m/s2) |
9,800 |
| Ambient temp. (℃) | －40～＋160 |
| Cable connection | Sidewise, 10-32 Screw connector |
| Mass (g) | 24 |
| Material | Stainless steel（SUS303） |
Small・Light VP-02 S Shear type
| Resonance frequency (Hz) | 40,000< |
|---|---|
| Frequency range (Hz) | fc～13,000 ※ |
| Charge sensitivity pC/(m/s2) |
0.22 ±20％ |
| Capacitance (pF) | 1000 |
| Allowable Acceleration(m/s2) |
10,000 |
| Ambient temp. (℃) | －20～＋150 |
| Cable connection | Sidewise, M3 Screw connector |
| Mass (g) | 1.2 |
| Material | Titanium & Aluminum（A2017B） |

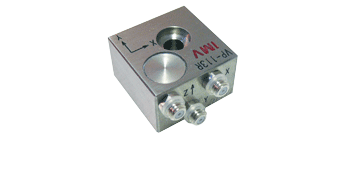

3 Axis VP-113R Shear type
| Resonance frequency (Hz) | 15,000< |
|---|---|
| Frequency range (Hz) | fc～6,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
1.5 ±10％ |
| Capacitance (pF) |
1,300 ±20% |
| Allowable Acceleration(m/s2) |
5,000 |
| Ambient temp. (℃) | －20～＋150 |
| Cable connection | Sidewise, 10-32 Screw connector |
| Mass (g) | 65 |
| Material | Stainless steel（SUS303） |

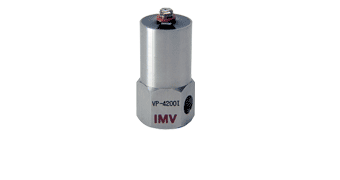

Isolated･General type VP-4200 I Shear type
| Resonance frequency (Hz) | 25,000< |
|---|---|
| Frequency range (Hz) | fc～7,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
5.0 ±10％ |
| Capacitance (pF) |
1,000 |
| Allowable Acceleration(m/s2) |
10,000 |
| Ambient temp. (℃) | －20～＋120 |
| Cable connection | Top-upright 10-32 Screw connector |
| Mass (g) | 45 |
| Material | Stainless steel（SUS303） |

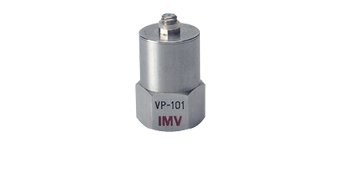

High Sensitivity VP-101 Shear type
| Resonance frequency (Hz) | 15,000< |
|---|---|
| Frequency range (Hz) | fc～5,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) | 1,000 |
| Capacitance (pF) |
2,200 |
| Allowable Acceleration(m/s2) |
3,000 |
| Ambient temp. (℃) | -20～+120 |
| Cable connection | Top-upright 10-32 Screw connector |
| Mass (g) | 35 |
| Material | Stainless steel（SUS303） |

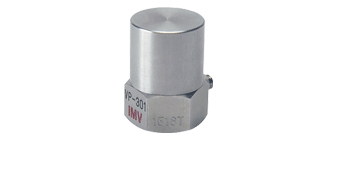

High Sensitivity VP-301 Shear type
| Resonance frequency (Hz) | 12,000< |
|---|---|
| Frequency range (Hz) | fc～3,500 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
35 ±10％ |
| Capacitance (pF) |
1,500 ±20％ |
| Allowable Acceleration(m/s2) |
1,500 |
| Ambient temp. (℃) | －20～＋120 |
| Cable connection | Sidewise, 10-32 Screw connector |
| Mass (g) | 100 |
| Material | Stainless steel（SUS303） |

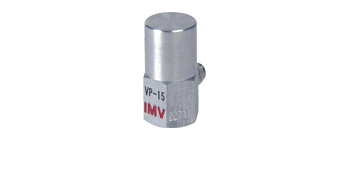

Large Acceleration VP-15 Compression type
| Resonance frequency (Hz) | 35,000< |
|---|---|
| Frequency range (Hz) | fc～10,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
1.5 ±20％ |
| Capacitance (pF) |
950 |
| Allowable Acceleration(m/s2) |
20,000 |
| Ambient temp. (℃) | －30～＋150 |
| Cable connection | Sidewise, 10-32 Screw connector |
| Mass (g) | 9 |
| Material | Aluminum（A2017B） |

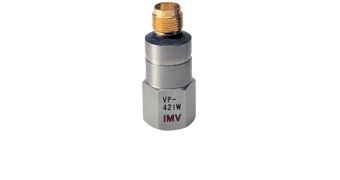

Isolated・Waterproof (Splash-proof) VP-42 IW Compression type
| Resonance frequency (Hz) | 30,000< |
|---|---|
| Frequency range (Hz) | fc～10,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) |
5.0 ±10％ |
| Capacitance (pF) |
1,000 |
| Allowable Acceleration(m/s2) |
5,000 |
| Ambient temp. (℃) | －30～＋150 |
| Structure | Isolated, Water proof IP54 |
| Cable connection | Top-upright TNC Connector |
| Mass (g) | 45 |
| Material | Stainless steel（A2017B） |
High Temperature VP-4201 H Compression type
| Resonance frequency (Hz) | 23,000< |
|---|---|
| Frequency range (Hz) | fc～5,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) | 5.0 ±20％ |
| Capacitance (pF) | 1,000 |
| Allowable Acceleration(m/s2) | 16,000 |
| Ambient temp. (℃) | －20～＋250 |
| Cable connection | Sidewise,10-32 Screw connector |
| Mass (g) | 42 |
| Material | Stainless steel（SUS304） |
Light・High Sensitivity VP-4132 Bending Type
| Resonance frequency (Hz) | 3,000< |
|---|---|
| Frequency range (Hz) | fc～1,000 ±1dB ※ |
| Charge sensitivity pC/(m/s2) | 3.5 ±20％ |
| Capacitance (pF) | 1,000 |
| Allowable Acceleration(m/s2) | 2,000 |
| Ambient temp. (℃) | －20～＋80 |
| Cable connection | Sidewise, M3 Screw connector |
| Mass (g) | 0.9 |
| Material | Aluminum（A5052） |

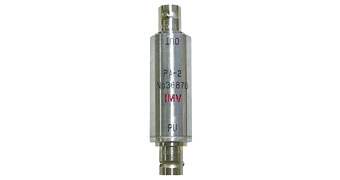

PA-2 Dual-line Output Charge Amplifier
| Model | PA-2 |
|---|---|
| Gain | －1mV／pC±2% |
| Power supply | 0.5-5mA constant current, voltage 15-30V |
| Freq. range | 2-50,000Hz (In the case of voltage 1000pF) |
| Maximum output voltage | ≧3.5Vp |
| Output impedance | ≦20Ω |
| Ambient temperature | －20℃～＋70℃(No Freezing) |
| Noise threshold | 20μVrms or less |
| Ground | Housing |
| Material of housing | Aluminum |
| Cable connection method | BNC connector |
| Mass | Approx.30g |
Intrinsic safety VP-A4345I Accelerometer with build-in Pre-amplifier
| Resonance frequency (Hz) | 25,000< | |||
|---|---|---|---|---|
| Frequency range (Hz) | 5～7,000 ±1dB | |||
| Voltage sensitivity mV/(m/s2) |
|
|||
| Max.measurable Accel. (m/s2) | 800 | |||
| Power Supply | 0.5～5mA Const. current, Voltage15～24V | |||
| Ambient temp. (℃) | －20～＋80 | |||
| Construction | Intrinsic safety Ⅱ BT4 | |||
| Cable pull-out | Top-upright TNC Connector | |||
| Mass | 70 | |||
| Material | Stainless steel（SUS303） |

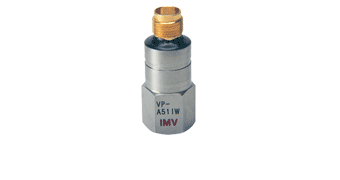

Isolated/Water-proof(Splash-proof)VP-A51 IW Accelerometer with build-in Pre-amplifier
| Resonance frequency | <30,000 Hz |
|---|---|
| Frequency range | 5 to 10,000 ± 3 dB |
| Voltage sensitivity | 5 mV/(m/s2) ±10％ |
| Max.measurable Accel. | 900 m/s2 |
| Power Supply | 0.5 to 10mA constant current, voltage 12 to 30V |
| Operating temperature range | -30 to +110 ﾟC |
| Structure | Isolated / waterproof (Equivalent to IP54) |
| Cable connection | Upward TNC connector |
| Weight | Approx. 50 g |
| Material | Stainless steel (SUS303) |
Small size VP-A1P0 Accelerometer with build-in Pre-amplifier
| Resonance frequency (Hz) | 40,000< |
|---|---|
|
Frequenc，二手测振仪，
